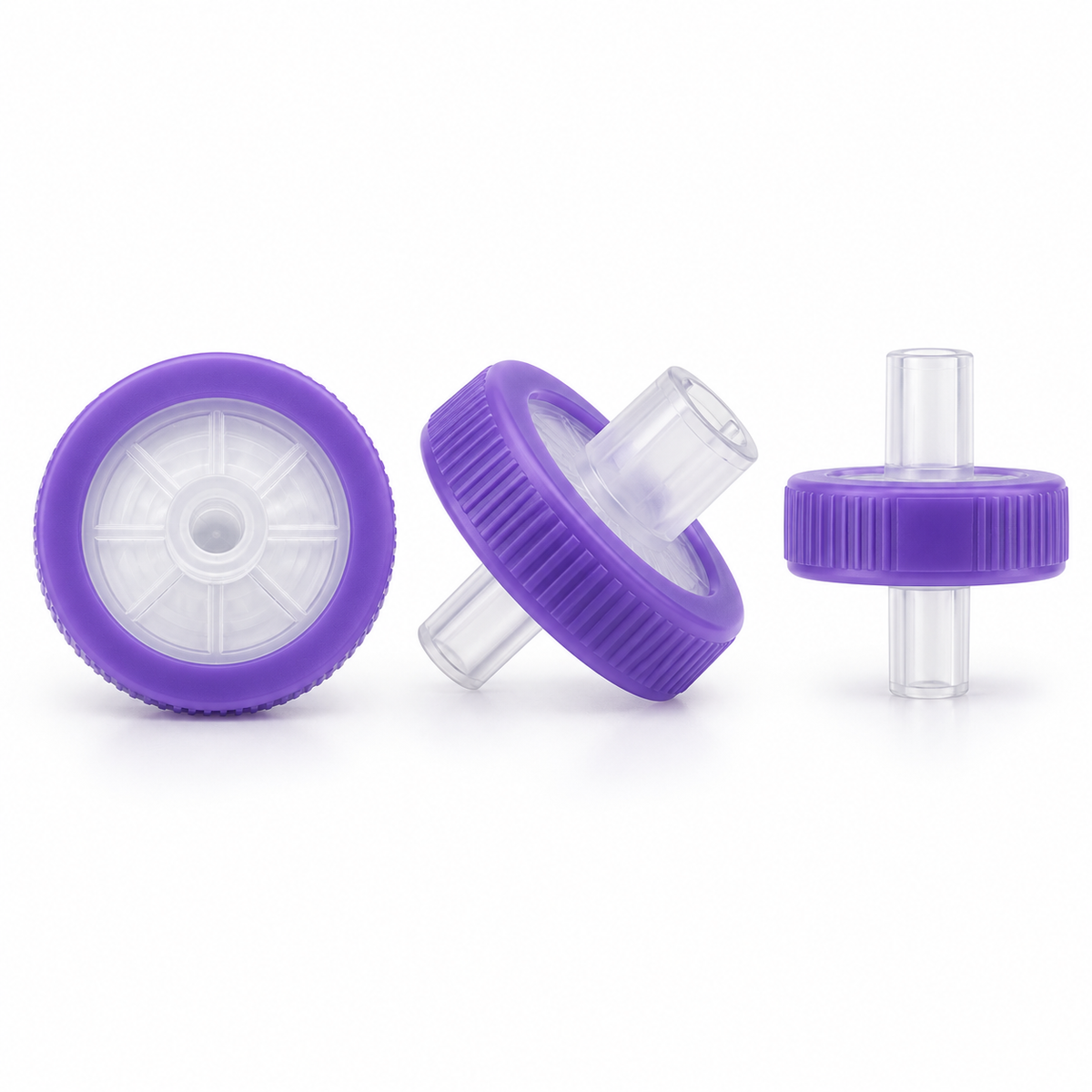

Purple economy PVDF syringe filters with clear Luer connections

Icarus Labs

PVDF Hydrophilic Economy Syringe Filters, 100pcs/pk

SKU: IL-011223-00650

Key information

Membrane Material: PVDF
Package: 100pcs/pk
Hydrophilic / Hydrophobic: Hydrophilic
Material of housing: PP
Maximum Operating Temperature: 100°C
Maximum Operating Pressure: 87psi

Hydrophilic PVDF economy syringe filters for laboratory sample preparation. Available filter diameters: 13 mm, 25 mm, 33 mm. Pore sizes: 0.22 μm, 0.45 μm. Select an available diameter and pore-size combination from the table. Low protein-binding for filtration of non-aggressive aqueous and...

Product informationFull product description

Low protein-binding for filtration of non-aggressive aqueous and mild organic solutions.

Low UV absorbing extractables and low nonspecific protein binding.

Sample filtration

These syringe filters are used to remove particulates from compatible liquid samples during laboratory preparation. Membrane material, pore size and filter diameter define the available configurations. Sterile and non-sterile formats are identified separately in the product specifications. This listing is for the hydrophilic membrane construction.

Technical specifications

Membrane Material	PVDF
Package	100pcs/pk
Hydrophilic / Hydrophobic	Hydrophilic
Material of housing	PP
Maximum Operating Temperature	100°C
Maximum Operating Pressure	87psi

Configuration	Specifications and pack contents
13 mm / 0.22 μm	13 mm PVDF Hydrophilic Syringe Filter 0.22 µm with Outer Ring and Printing. 100pcs/pk.
25 mm / 0.22 μm	25 mm PVDF Hydrophilic Syringe Filter 0.22 µm with Outer Ring and Printing. 100pcs/pk.
33 mm / 0.22 μm	33 mm PVDF Hydrophilic Syringe Filter 0.22 µm with Outer Ring and Printing. 100pcs/pk.
13 mm / 0.45 μm	13 mm PVDF Hydrophilic Syringe Filter 0.45 µm with Outer Ring and Printing. 100pcs/pk.
25 mm / 0.45 μm	25 mm PVDF Hydrophilic Syringe Filter 0.45 µm with Outer Ring and Printing. 100pcs/pk.
33 mm / 0.45 μm	33 mm PVDF Hydrophilic Syringe Filter 0.45 µm with Outer Ring and Printing. 100pcs/pk.

Membrane and method selection

Choose the membrane for the sample solvent and analyte, then choose the pore size required by the method. Match the filter diameter and syringe connection to the intended workflow. Use the stated operating limits where provided; do not transfer a pressure, temperature or pH limit from one membrane or filter format to another.
